1G Bandwidth Avalanche Photodetector Free-Space

APD210 Series Avalanche Photodetector,Free-Space,SMA Output, High Gain, Ultra Weak Laser Detection.

If you want to know the product details and prices, or If the parameters are not suitable, you can contact me for customization.

Name：Huang （Sales Engineer）

WeChat： 13427781756 (Scan QR Code）

WhatsApp：+8613427781756 Web | App

Email：Huangqianyuan@glgyzn.com

Purchase from our overseas sales department (YB Photonics)

Overview

1G bandwidth avalanche photodiode (APD) detector module, model APD210. With its high gain and low noise, this module is ideal for visible light communication applications. Designed for free space optical input with a 1G bandwidth, this detector module delivers reliable analog signal output.

Features

1G bandwidth
Compact size
High gain and low noise
All metal shell, excellent shielding performance
M6 threaded hole for easy installation

Application

Visible light communication
Detects ultra-weak light signals
Detect fast laser pulses
Industrial testing

Document download

Manual.pdf

Specifications

屬性	APD210A-1G	APD210C-1G
Material	Si	InGaAs
Wavelength Range	400-1100nm	800-1700nm
Optical Input	Free Space（FC Option）	Free Space（FC Option）
Detector Size	200um	200um

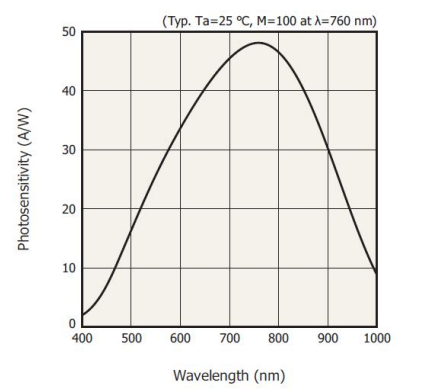

Responsiveness	48A/W @ 760nm (M = 100)	18A/W @ 760nm (M = 20)
Bandwidth	1-1000MHz	1-1000MHz
Rise Time	1.45ns	500ps
Conversion Gain (Max) @HiZ	2.5x10^5V/W	2.2x10^5V/W
M-factor Range	10-100	4-20
Minimum optical power	-47dBm(20nw)	-47dBm(20nw)
Noise voltage	<5mV	<5mV
Maximum output amplitude@HiZ	1V	1V
Operating voltage	12VDC ±10%	12VDC ±10%
Operating current	<100mA	<100mA
Output connector	SMA	SMA
Output impedance	50Ω	50Ω
AC or DC Coupling	AC	AC
Operating temperature	-10~50℃	-10~50℃
Storage temperature	-40~85℃	-40~85℃
Dimensions	60mm x 50mm x 32mm（長(zhǎng)x寬x厚）	60mm x 50mm x 32mm（長(zhǎng)x寬x厚）
