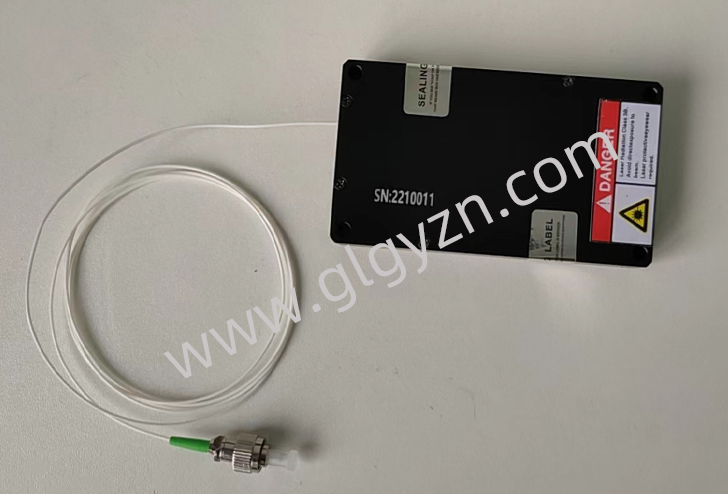

1550nm narrow linewidth frequency modulation laser module
Narrow linewidth frequency modulation laser module with ultra-low RIN noise and excellent frequency modulation At present, it is widely used in automotive lidar and optical fiber sensing detection systems.
If you want to know the product details and prices, or If the parameters are not suitable, you can contact me for customization.
APPLICATIONS
- Fiber optic sensing system
- LiDAR
Specifications
| Item | Minimum | Typical | Maximum | Unit | Remark |
|---|---|---|---|---|---|
| Wavelength | 1530 | 1550 | 1570 | nm | Customizable |
| Work temperature | -10 | 70 | ℃ | ||
| Output power | 90 | 100 | mW | Customizable | |
| RIN | -165 | -163 | dBc/Hz@100kHz | ||
| Work current | 400 | 2000 | mA | ||
| Work voltage | 4.75 | 5 | 5.25 | V | |
| Lorentz line width | 10 | 20 | KHz | Customizable | |
| Side-mode rejection ratio | 60 | dB | |||
| Extinction ratio | 20 | dB | |||
| FM range | 3 | 5 | G | ||
| Modulation rate | 1 | 100 | 200 | KHz | |
| FM nonlinearity | 0.5% | ||||
| Output mode | Fiber output (default.) | ||||
| Interface type | FC/APC (default) | ||||
| Fiber type | SM/PM | ||||
