紫外光電二極管-UV275S1N1

響應波長：240-280nm，具有體積小、靈敏度高、暗電流低、抗可見光和紅外干擾能力強。

---

特性 Features

• AlGaN based material
• UVC photodiode
• Good solar blindness
• TO-46 metal housing
• High responsivity and low dark current

應用 Applications

• Ozone monitoring
• UV radiation dose measurement
• Flame detection

下載 Download

UV385S1N1.pdf

規格 Specifications

Parameter	Symbol	Value	Unit
Wavelength of peak responsivisity	λmax	275	nm
Peak responsivisity (at 275nm)	Rmax	0.12	A/W
Spectral response range		240~280	nm
UV/visible rejection ratio (Rmax/R400 nm)	VB	>103
Chip size	A	1	mm2
Dark current (1 V reverse bias)	Id	<1	nA
Capacitance (at 0 V and 1 MHz)	C	8.6	pF
Temperature coefficient	Tc	-0.1	%/℃
Operation temperature range	Topt	-10~60	℃
Storage temperature range	Tstor	-40~85	℃
Soldering temperature (3 s)	Tsold	260	℃
Reverse voltage	VRmax	10	V

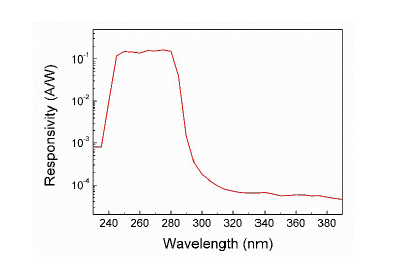

光譜響應 Spectral response

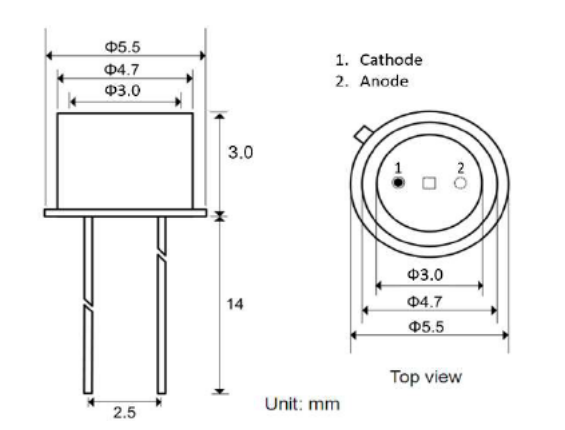

封裝尺寸 Package dimensions

---
